Flying Laser Machine
Describe

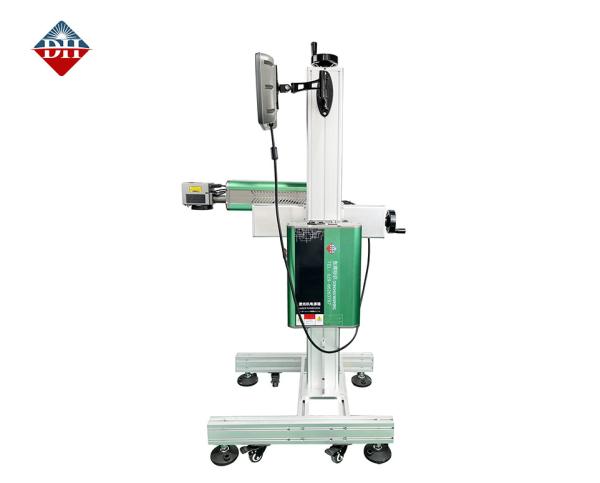

Carbon dioxide laser marking machine
Composed of a 10.2-inch touch screen, laser, galvanometer, field
mirror, power unboxing, all aluminum 3D bracket, fixed base, etc;
Using consumables free, free of clear maintenance, and unable to be
carved off; Suitable for a wide range of fields such as food
industry, pharmaceutical industry, building materials industry,
etc; There are multiple application methods that can be used in
conjunction with production lines, various packaging machines,
paginators, conveyors, and designated locations.
Features
The simple split-piece design ensures smooth integration into your
production line, and the intuitive user interface and built-in
wizards significantly reduce operator training and get you up to
speed quickly.
Providing premium quality at an affordable price makes laser
technology universally applicable.
Our company's CO2 laser marking machine uses high-quality lasers,
high-performance galvanometer scanning systems, and control
software developed by our company. It has fast speed, stable
performance, good laser mode, long service life, and can work
continuously for more than 30,000 hours. The conversion efficiency
is high and the power consumption of the whole machine is small.
The system is simple to operate and flexible and convenient to
change. It is compatible with files output by AUTOCAD, CORELDRAW,
PHOTOSHOP, CAXA and other software. It can be marked with barcodes,
QR codes, graphics and numbers, etc. It supports PLT, PCX, DXF, BMP
and other file formats, and can directly use SHX and TTF font
libraries. The system can automatically encode and print serial
numbers and batch numbers
Support communications:
Data communication is carried out through the serial port or
network port and comes with single-machine and dual-machine coding
software.
remote control:
Can be linked to the host computer through Ethernet to achieve
remote operation
Protection level:
The controller as a whole can reach IP55 protection grade, and the
surface can reach IP65 protection grade. Can be sprayed with water
Simplicity - The large "what you see is what you get" color touch
screen provides intuitive icons and shortcuts to ensure
user-friendly operation and other security functions are quick and
easy to use, and can be used through standard
The USB port facilitates information loading and Ethernet access.
Spefication
| project | Product parameter table | CO2-40W | CO2-60W |
Overall machine characteristics
| Machine material | Sandblasted anodized all-aluminum construction |
| laser | Sealed metal RF CO2 laser Th |
| Laser wavelength | Standard 10.6um, optional 10.2 or 9.3um |
| Actual output power | ≥43W | ≥70W |
| Marking speed | ≤12000mm/s |
| master control | 10.2-inch touch controller |
| cooling system | 40W air cooling 60W water cooling |
Coding parameters
| focusing lens | Focal length 145mm |
| Minimum line width | 0.03mm |
| Repeatability | 0.01mm |
| Marking range | 110mm×110mm (optional) |
| Targeting | Red light focus |
| Number of lines of characters to be engraved | Any row within the marking range |
| Th production line speed | 0~130m/min (depending on the material) |
Software introduction
| multi-lingual | English, French, Spanish, German, Chinese, Russian, Arabic, etc. |
| Administrative permissions | Multi-user management permissions |
| operating system | Linux system |
| Coding mode | Three printing modes: static, simulation and encoder |
| reserved signal | Start printing, printing status, printing completed, fault alarm |
| Data protection | With power-off data protection function |
| Missed dose monitoring | Provides overspeed alarm function due to false triggering due to
material reflection |
| go to intersection | Automatically remove intersection points and avoid key points of
intersection |
| Coding software | Can realize single and double machine code sending |
Support type
| font | Chinese, English, digital, traditional and other standard fonts |
| file format | BMP/DXF/HPGL/JPEG/PLT |
| barcode | CODE39, CODE128, CODE126, QR, Zhenzhi code (optional) |
Machine parameters
| power supply | 220V/50HZ |
| power consumption | 800W |
| Machine net weight | 40W laser machine part: 15kg 60W: 23kg Flight bracket part: 30kg |
| Dimensions | 40W machine head: 650X180X130mm 60W machine head: 850X160X165mm |
| Environment | Require | External temperature 0℃-45℃; Humidity ≤95; Non-condensing; No
vibration |
Printing effect
